Description
Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "cross country." Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the SB120 means to you. And you alone.
Definition ready.
IMAGES ARE NOT CORRECT... THIS OFFER COMES WITH ROCKSHOX SHOCK AND FORK
Specification

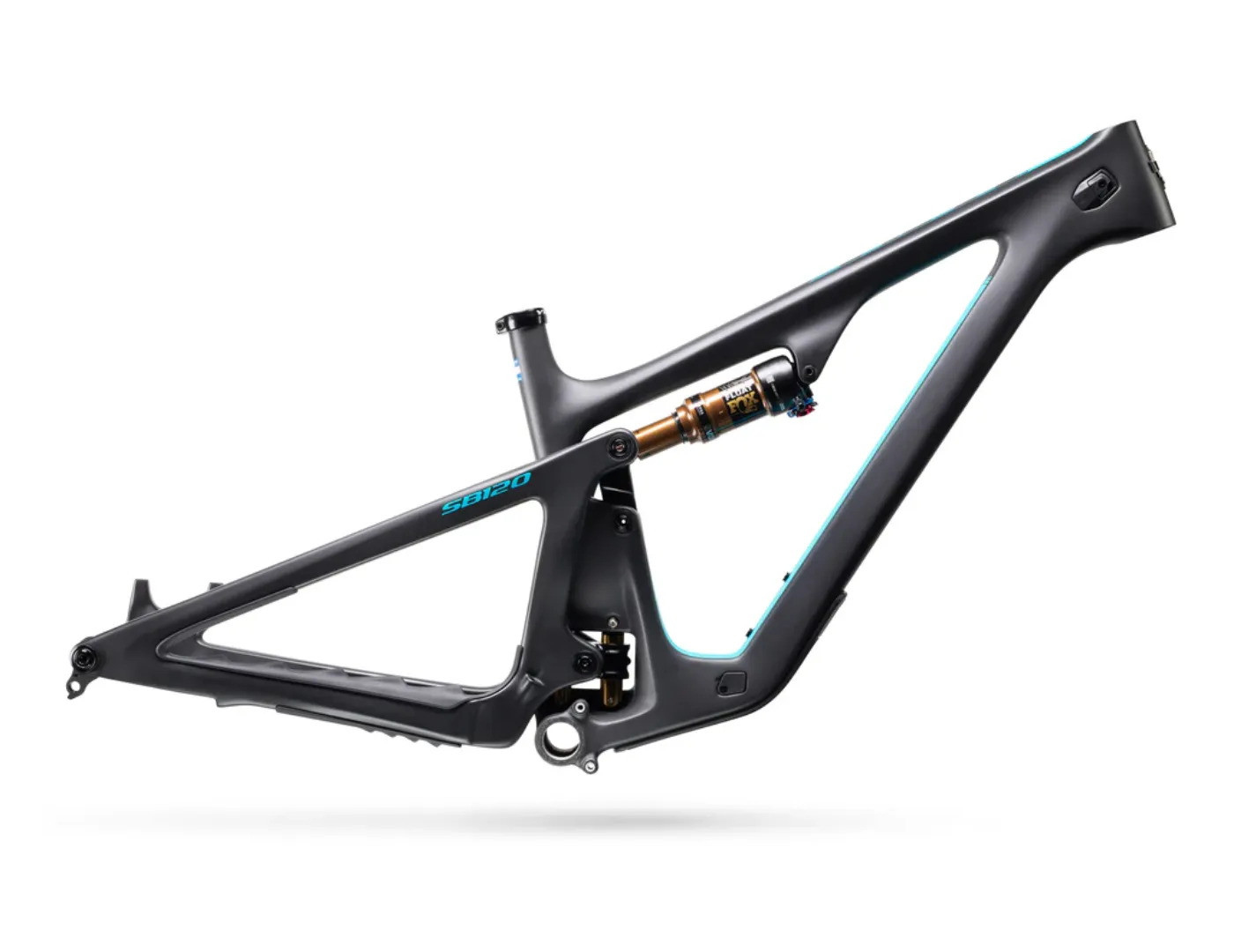

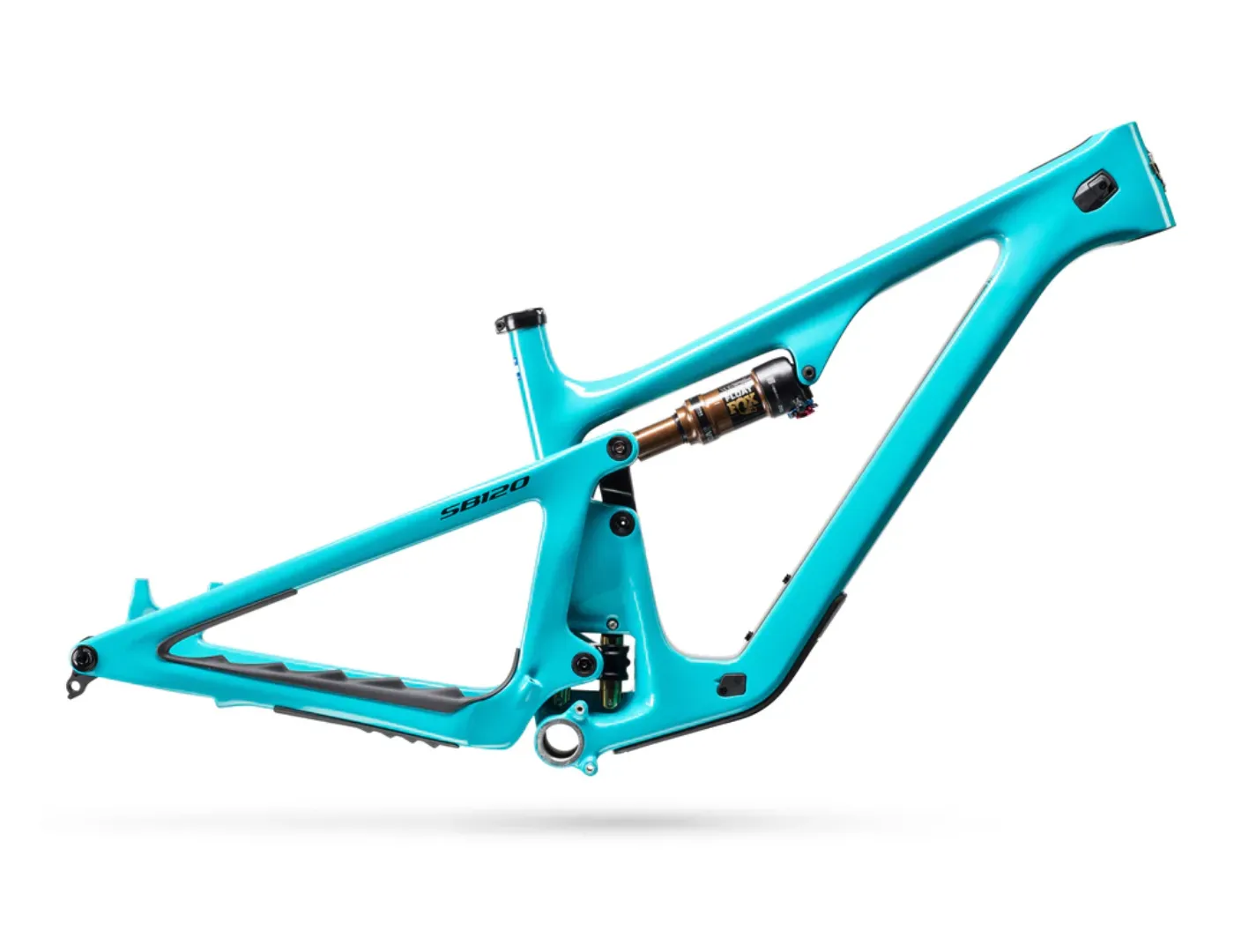

YETI SB120 FRAME ONLY
TRAVEL 120MM (4.7")
MATERIAL TURQ SERIES
SHOCK ROCK SHOX SUPER DELUXE ULTIMATE
FORK ROCK SHOX PIKE ULTIMATE 140MM
Geometry
| XS | SM | MD | LG | XL | 2XL | ||
| A | SEAT TUBE LENGTH | 13.6 | 14.4 | 15.7 | 17.3 | 18.5 | 19.1 |
| B | EFFECTIVE TOPTUBE LENGTH | 21.3 | 22.5 | 23.8 | 24.6 | 25.7 | 26.5 |
| C | HEADTUBE ANGLE | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 |
| D | EFF. SEAT TUBE ANGLE | 76.1 | 76.2 | 76.2 | 76.2 | 76.2 | 76.2 |
| E | ACTUAL SEAT TUBE ANGLE | 70.8 | 71.2 | 71.6 | 72.0 | 72.4 | 72.9 |
| F | CHAINSTAY LENGTH | 17 | 17.1 | 17.2 | 17.3 | 17.4 | 17.4 |
| G | WHEELBASE | 44.3 | 45.7 | 47.0 | 48.0 | 49.3 | 50.3 |
| H | ESTIMATED BB HEIGHT | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
| I | STANDOVER | 27.9 | 28.0 | 28.2 | 28.4 | 28.5 | 28.6 |
| J | HEADTUBE LENGTH | 3.6 | 3.9 | 4.1 | 4.5 | 4.9 | 5.8 |
| K | FORK AXLE TO CROWN | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 |
| L | FORK OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 23.9 | 24.1 | 24.3 | 24.7 | 25.1 | 25.9 |
| N | REACH | 15.4 | 16.6 | 17.8 | 18.6 | 19.6 | 20.1 |
| O | FRONT CENTER | 27.2 | 28.5 | 29.8 | 30.7 | 31.9 | 32.8 |
| P | VERTICAL FORK TRAVEL | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Size
| XS | 4'10-5'5"/ 145-160CM |
| SM | 5'1"-5'7"/155-170CM |
| MD | 5'5"-5'11"/ 165CM-180CM |
| LG | 5'10"-6'3"/178-191CM |
| XL | 6'1"-6'7"/185-201CM |
| 2XL | 6'5"- 6'11"/195-210CM |
